M is for Milestone.

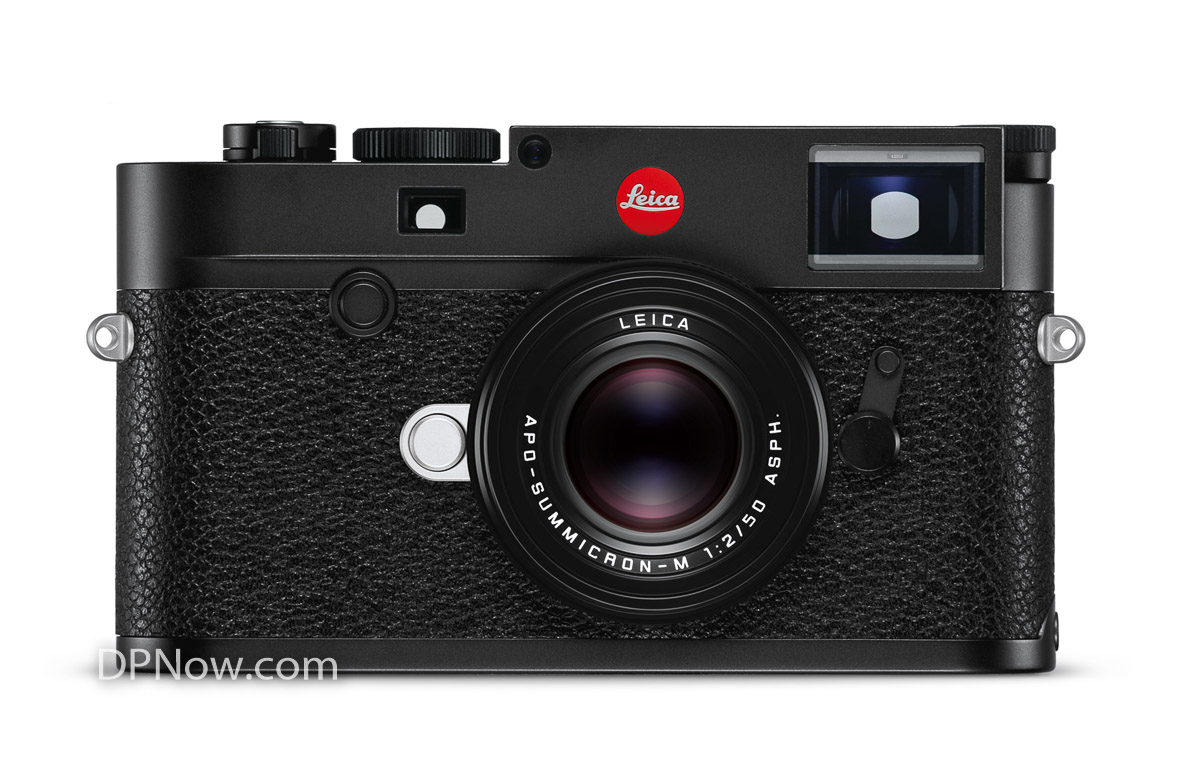

Introducing the Leica M10: slimmest ever digital M delivers enhanced performance, intuitive handling and direct control
18 January 2017
Leica Camera has today announced the M10: the latest milestone in the Leica M rangefinder portfolio. This iconic camera system has once again set new standards with a perfect balance of long- established tradition and technical innovation, while embodying the true essence of photography like no other camera.
Although its features have been adapted to meet the precise needs of contemporary photographers, the essential principles of the renowned M-System have been meticulously retained. Every single component and technical detail is focused uncompromisingly on photography. With its compact dimensions, improved performance and intuitive handling, the Leica M10 has established a new landmark in the ongoing history of the legendary Leica M.

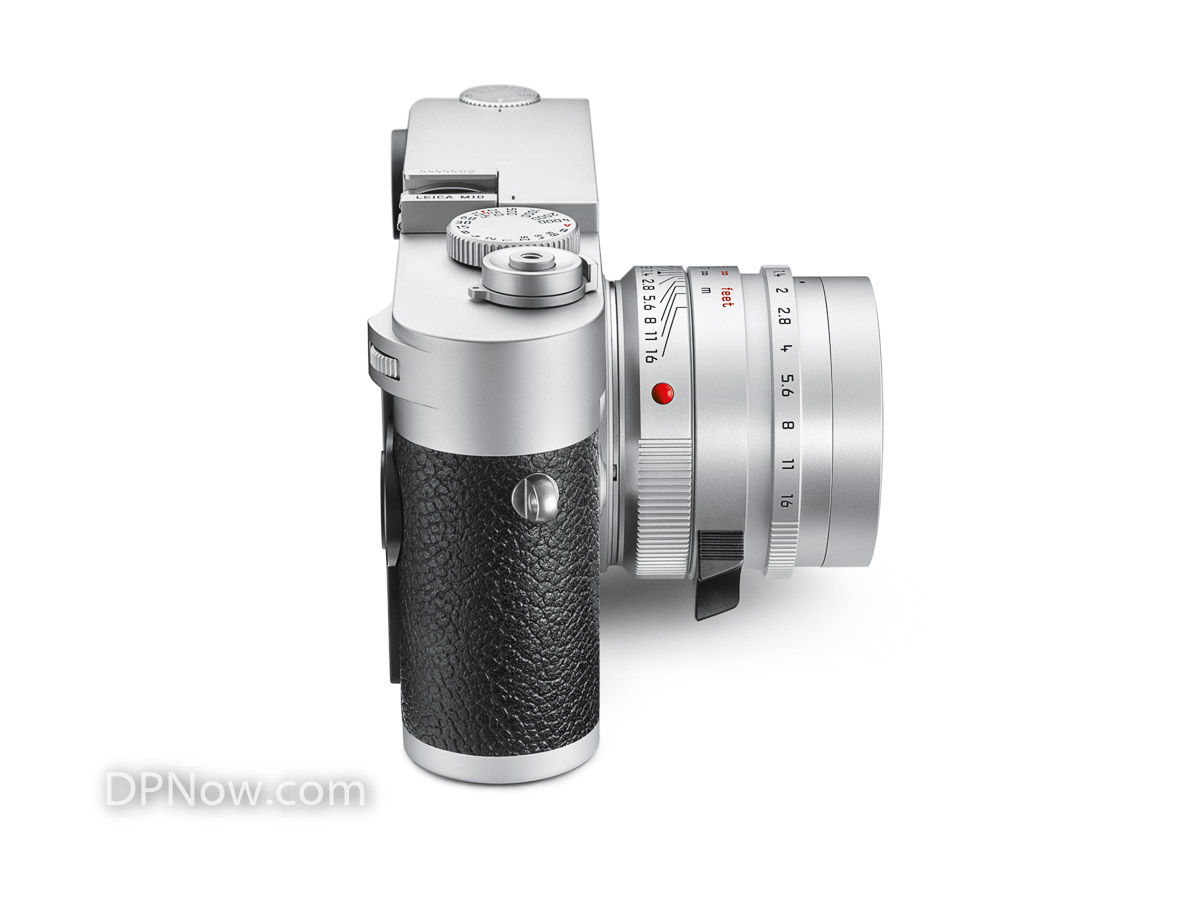

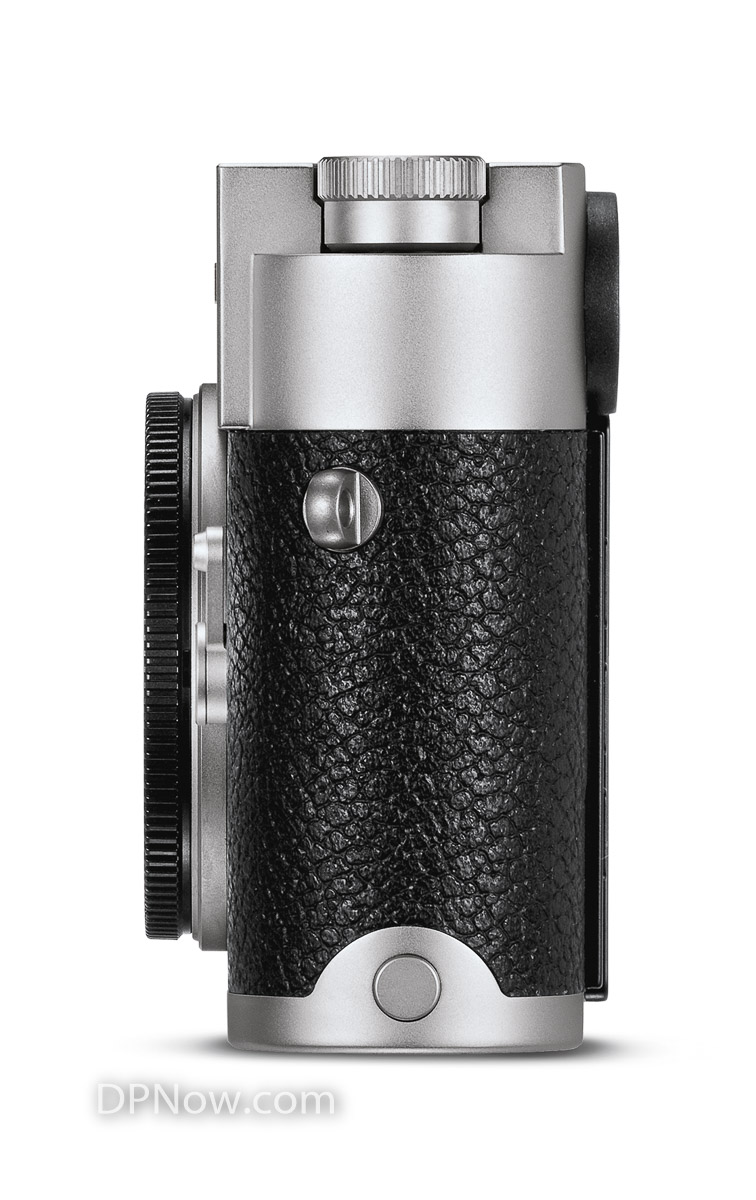

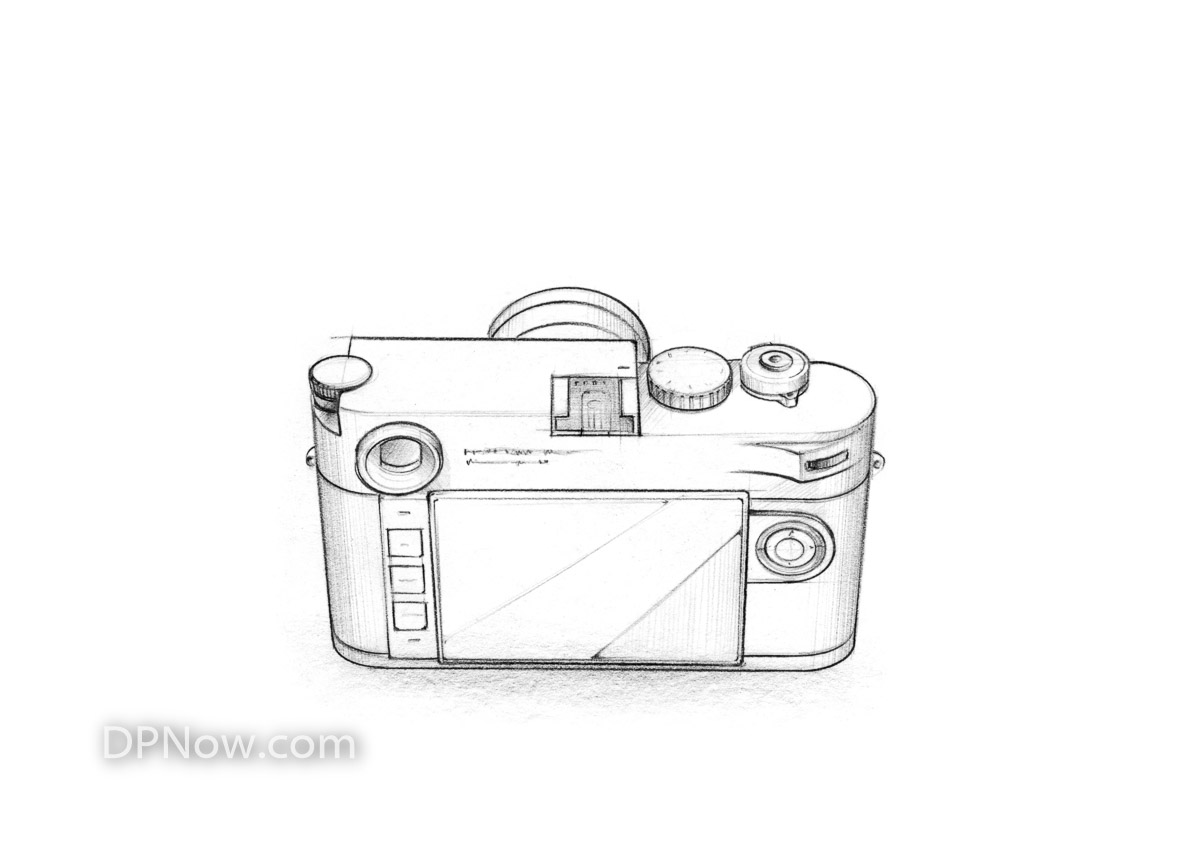

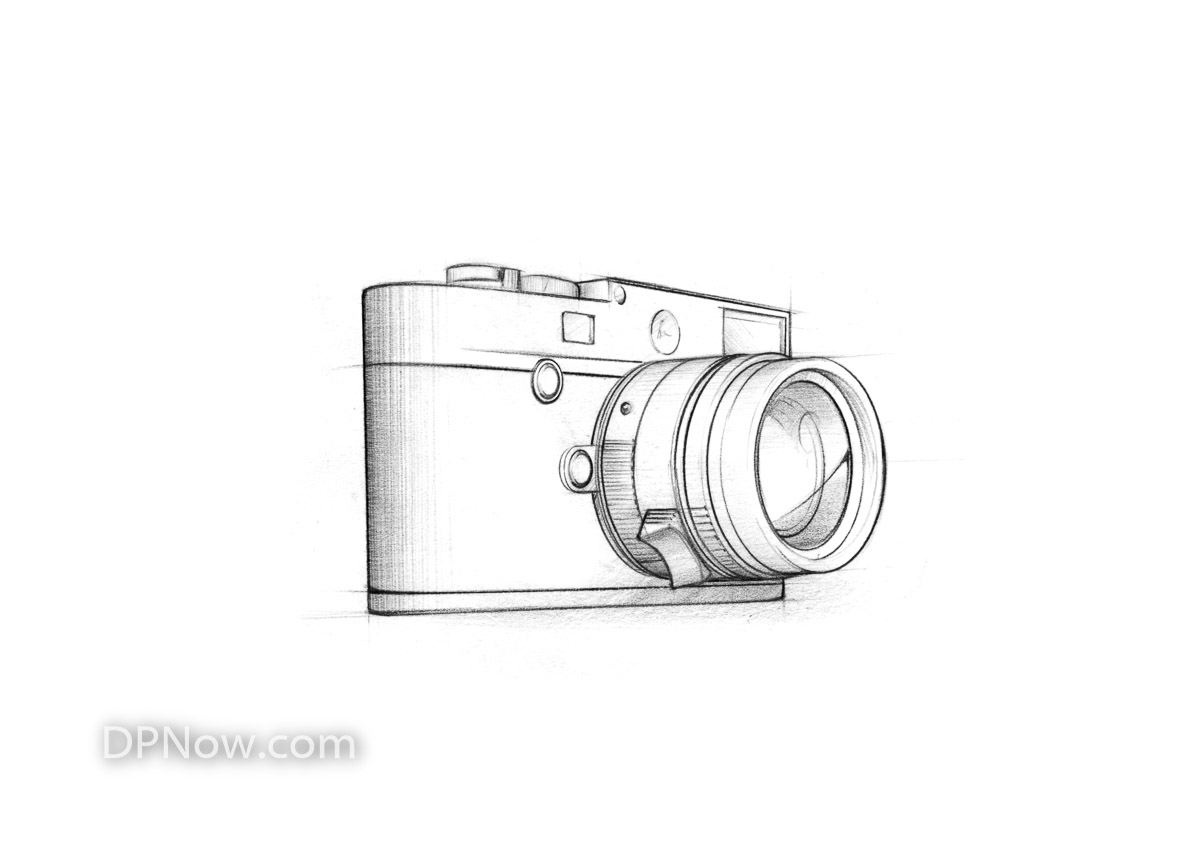

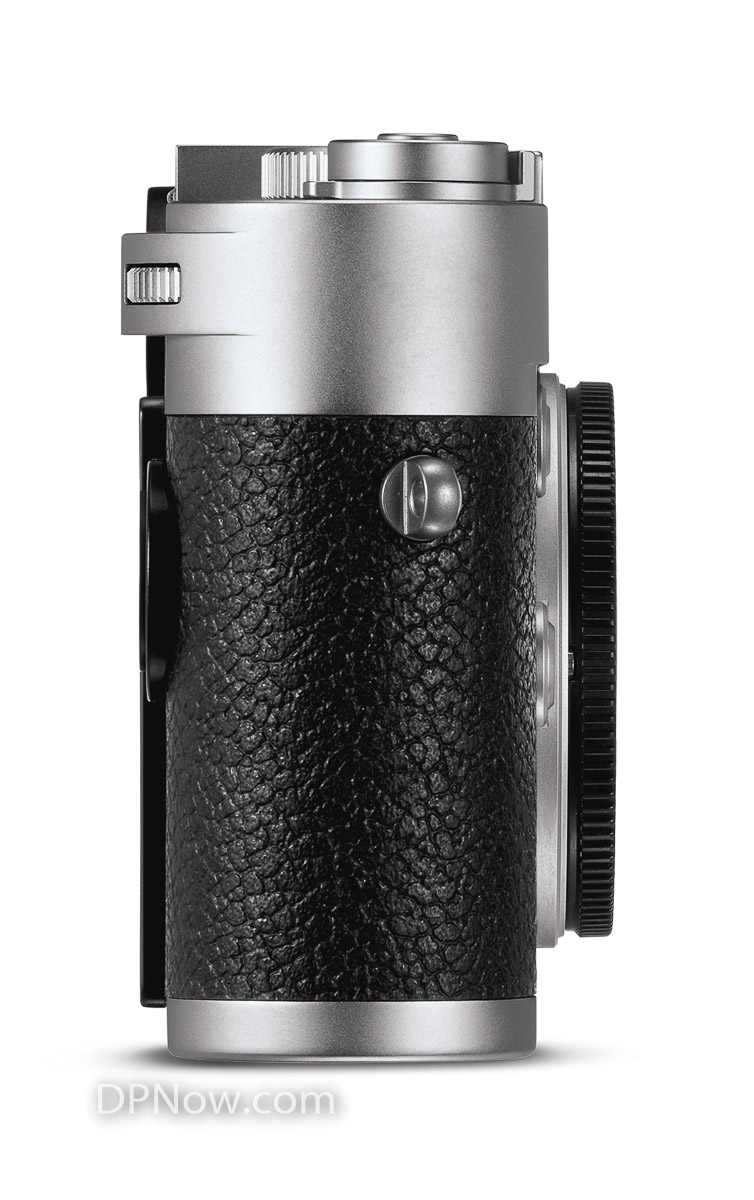

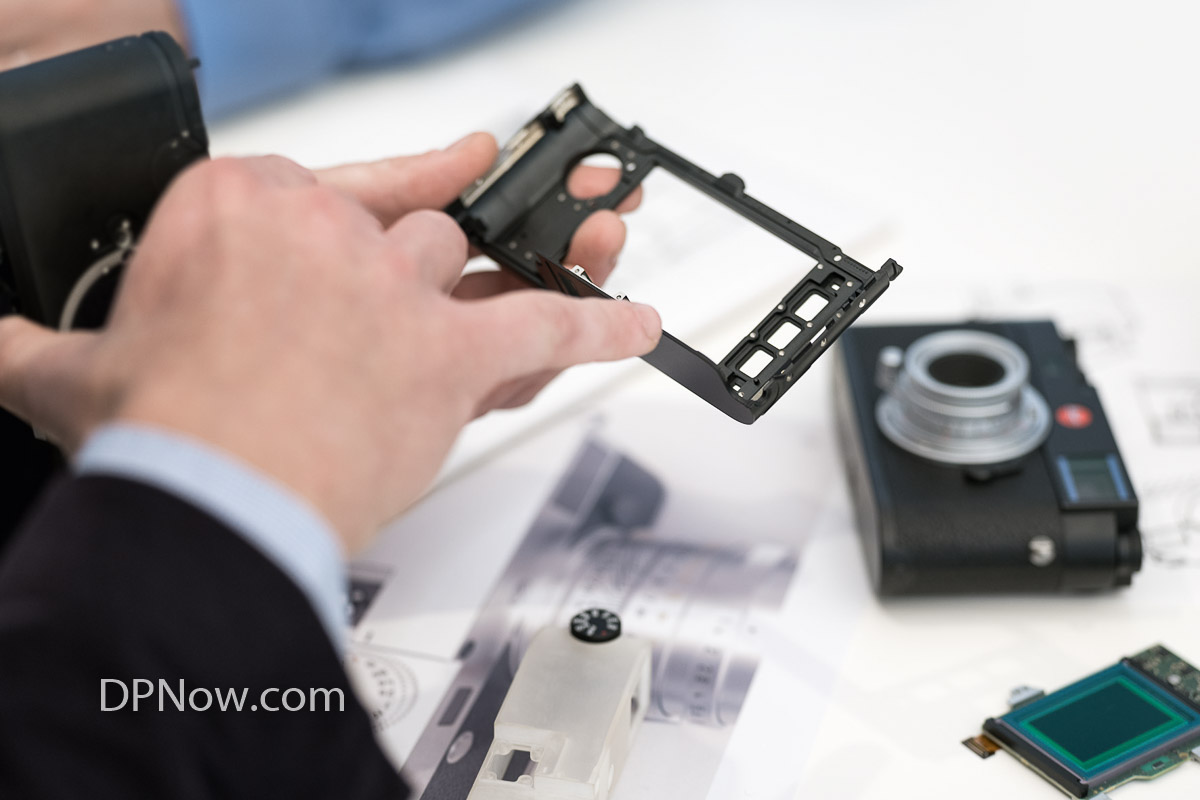

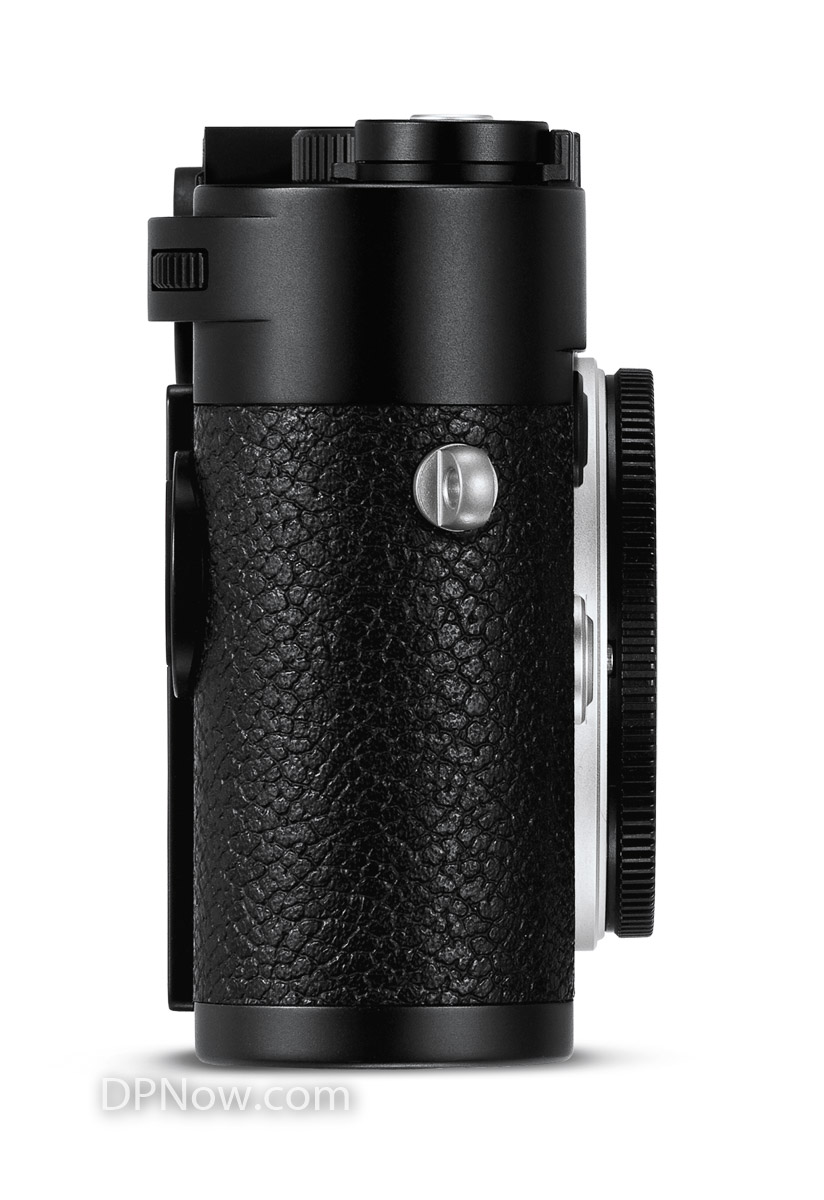

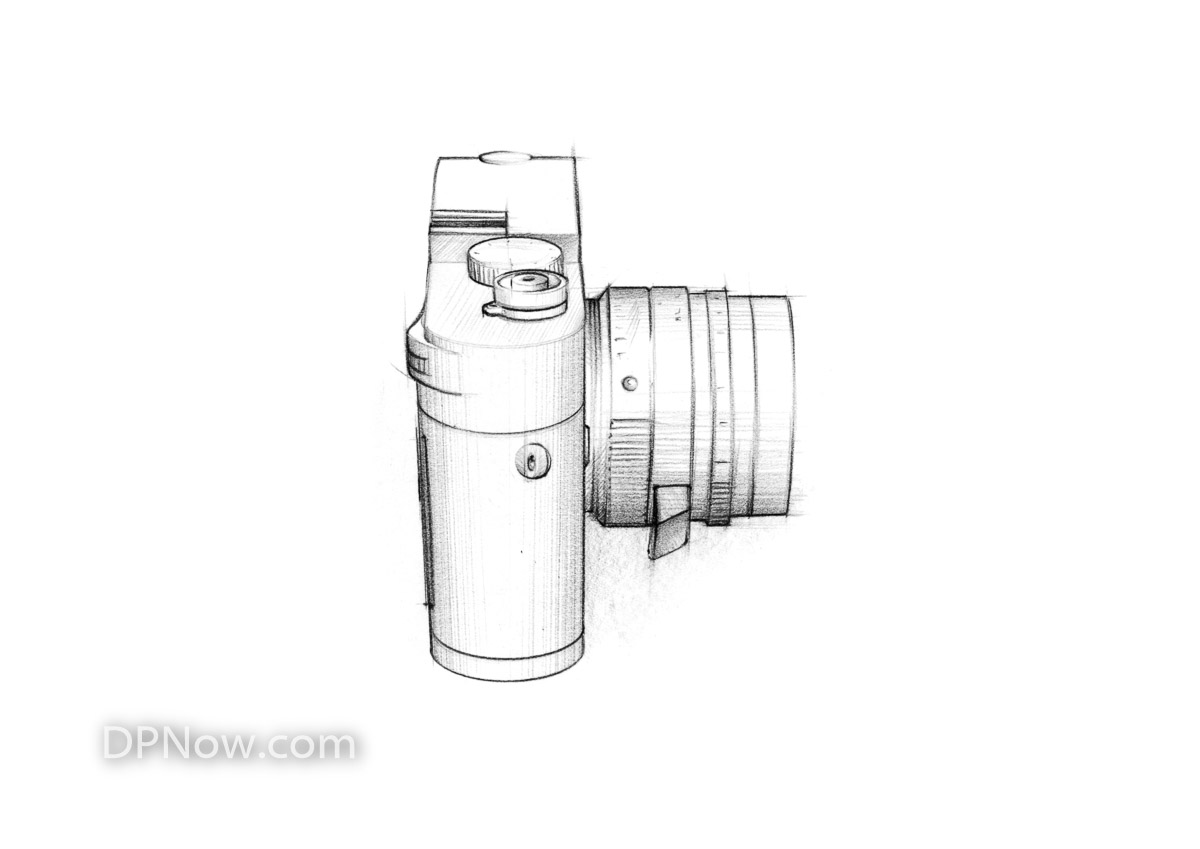

The form factor: analogue dimensions enter the digital age
Many photographers working with analogue Leica M cameras have expressed their interest in a digital M with the same ergonomic features and size that fits perfectly in the hands. With the Leica M10, this wish has become a reality, with a top plate depth of just 33.75mm – four millimetres less than its closest relative, the Leica M (Typ 240). The Leica M10 is now the slimmest digital M of all time.

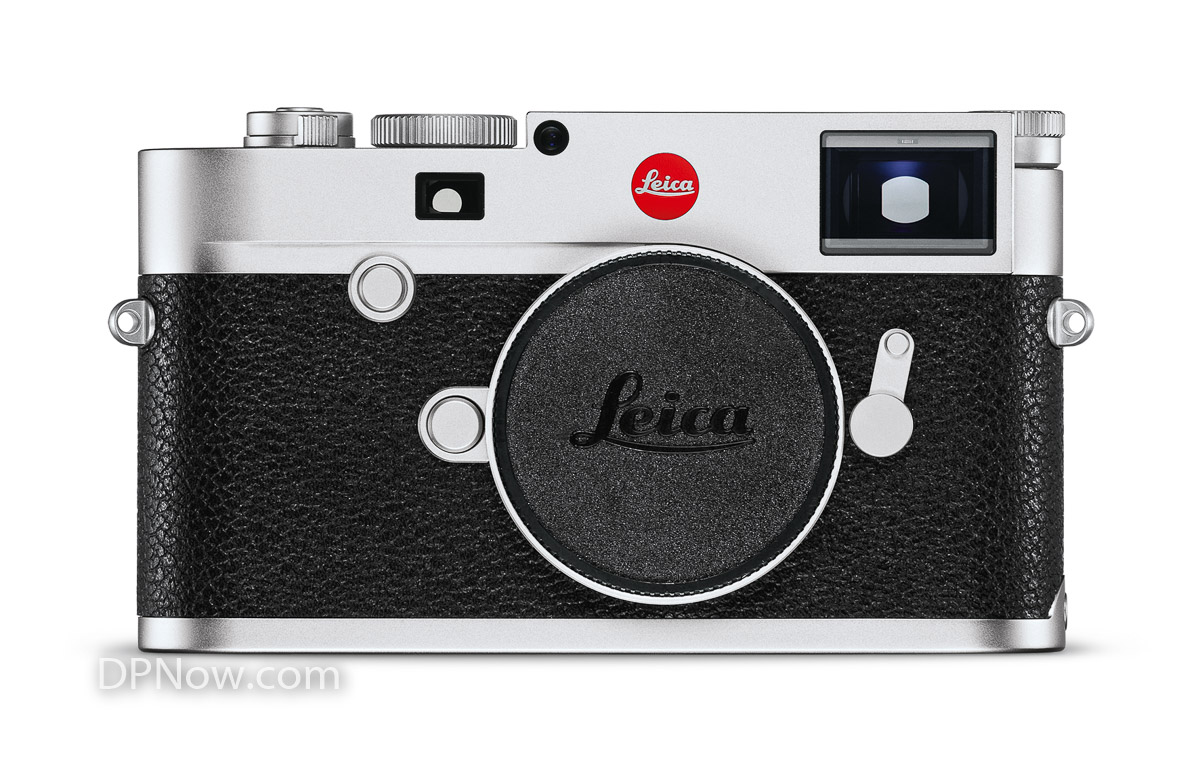

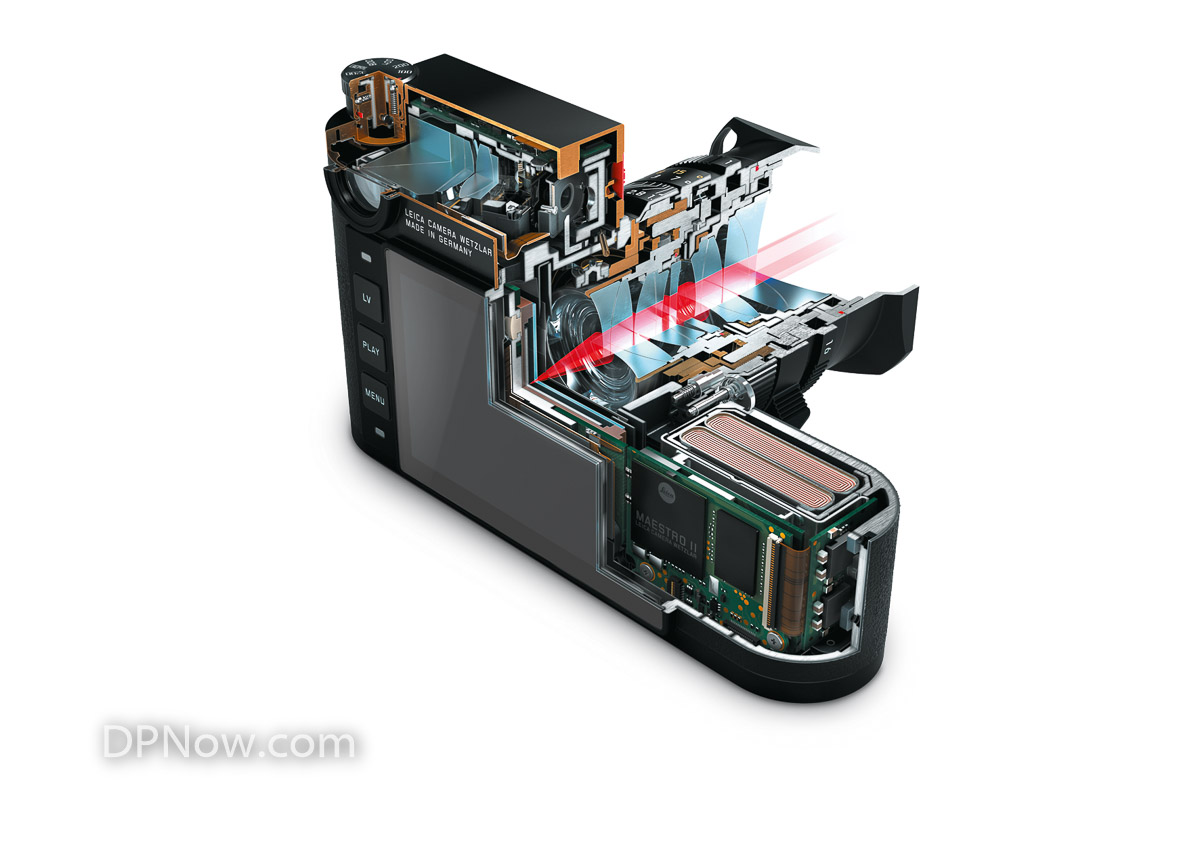

The rangefinder: a precise window on the world

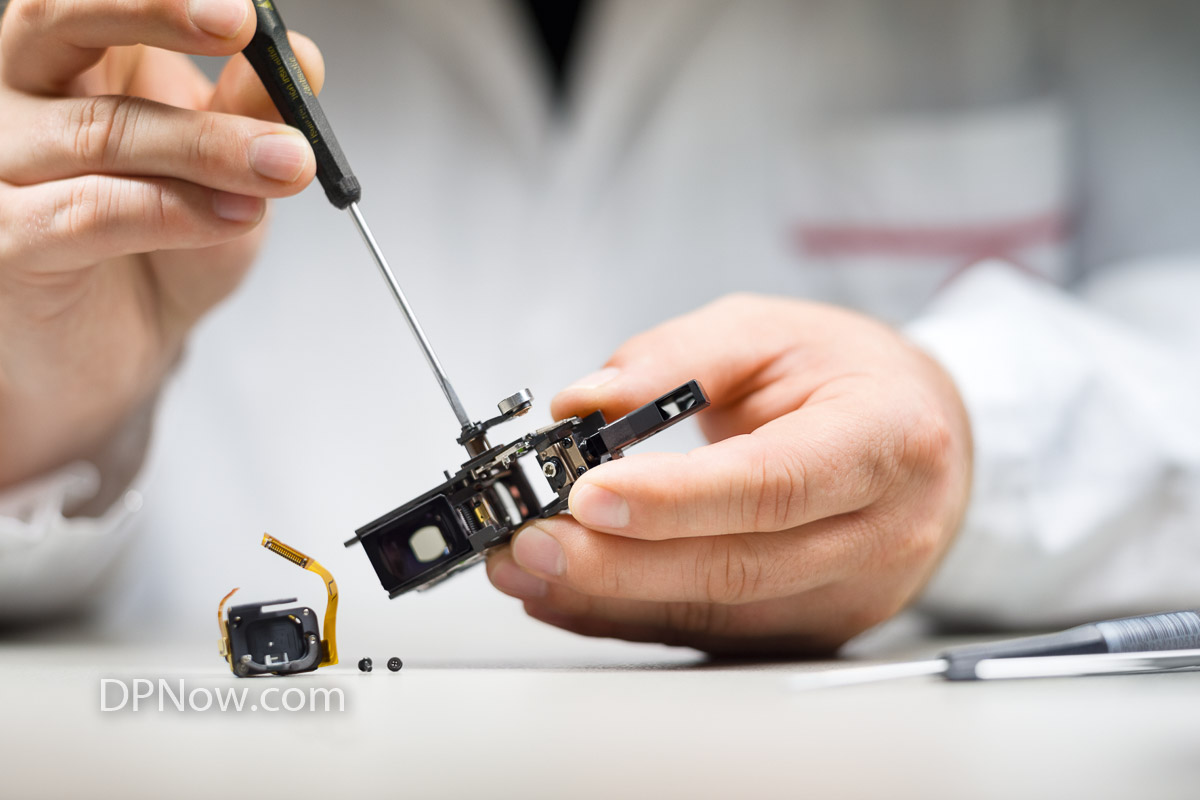

The rangefinder has always played a significant role in the heritage of the Leica M-System. Several key aspects of this legendary focusing technology have been further optimised in the Leica M10. To improve the view of the subject being captured, the field of view has been enlarged by 30 per cent and the magnification factor has been increased to 0.73. For eye-relief, the optimum distance of the eye from the viewfinder eyepiece has also been lengthened considerably. Thanks to a 50 per cent increase in this distance, the viewfinder is much more comfortable to use, particularly for photographers who wear glasses.
The sensor: the digital canvas

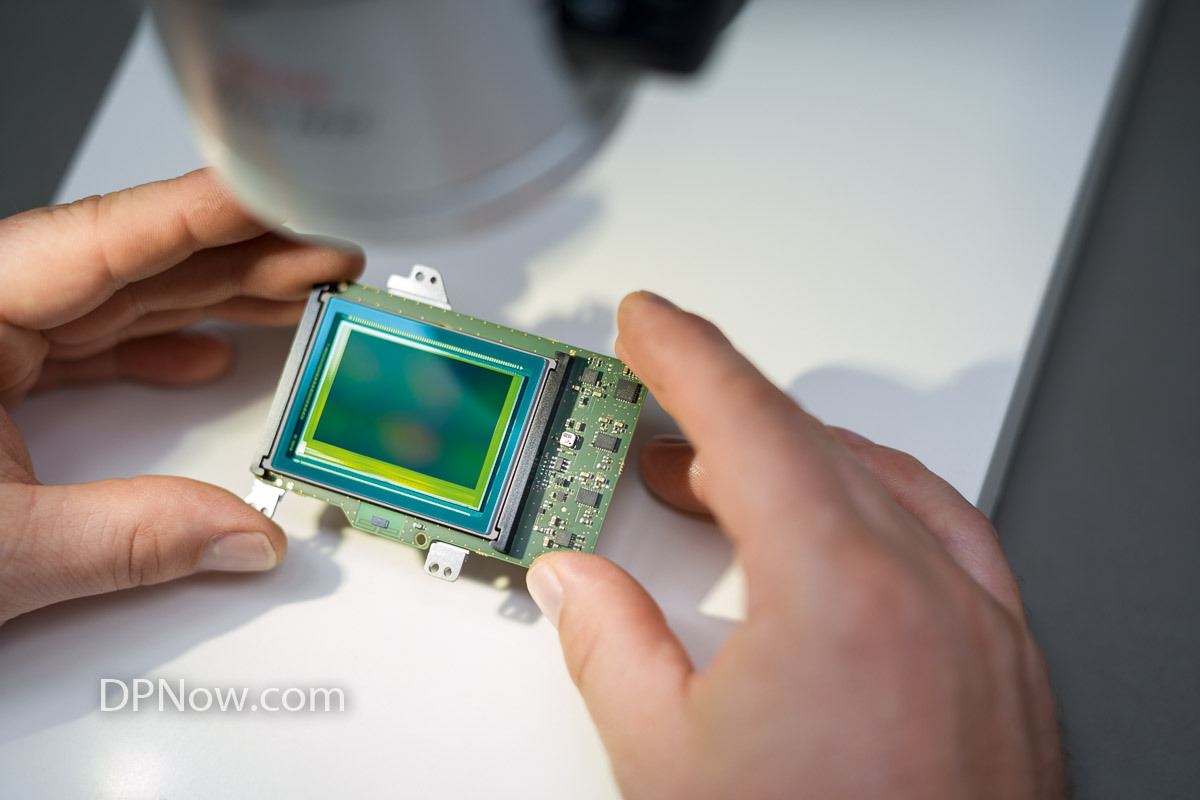

The key component of the Leica M10 is the 24 MP, full-frame CMOS sensor developed specifically for this camera, offering significant improvements in all image performance parameters: impressive dynamic range, excellent contrast rendition, exceptional sharpness and fine detail resolution. Its unique pixel and micro-lens architecture enables a particularly large aperture, ensuring rays of light hitting the sensor even from the most oblique angles are precisely captured by its photodiodes – this has been further improved compared to its predecessor. The glass cover plate of the sensor acts as an infrared cut-off filter, therefore avoiding undesirable refraction of incoming light with additional layers of glass. The omission of a low-pass filter also ensures the Leica M10 delivers maximum sharpness, leading to significantly enhanced imaging results, especially in the case of wide-angle and very fast lenses.
Thanks to the new design of the Leica M10 sensor, the ISO sensitivity range has been expanded, allowing exposures at values between ISO 100 and 50,000, with considerably improved noise characteristics at higher ISO settings. The Leica M10 opens up entirely new genres of photography and delivers exceptional imaging performance even in challenging lighting conditions.
Image processing electronics: the next quality level
The latest-generation Maestro II image processor incorporated in the Leica M10 represents state-of- the-art, advanced processor technology. Combined with the new 24 MP sensor, it ensures that all exposures are captured with exceptionally brilliant image quality. Thanks to its 2GB buffer memory and continuous shooting at up to five frames per second at full resolution, photographers will never again miss the decisive moment. The Leica M10 is the fastest M-Camera ever made.

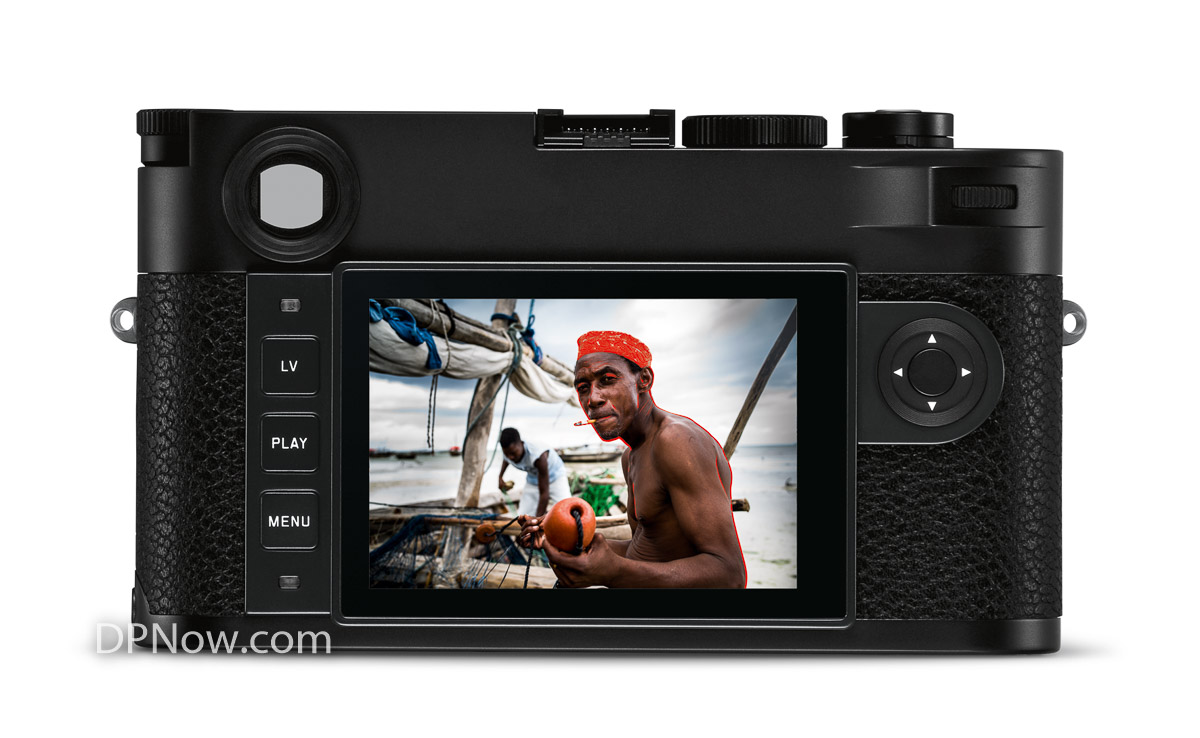

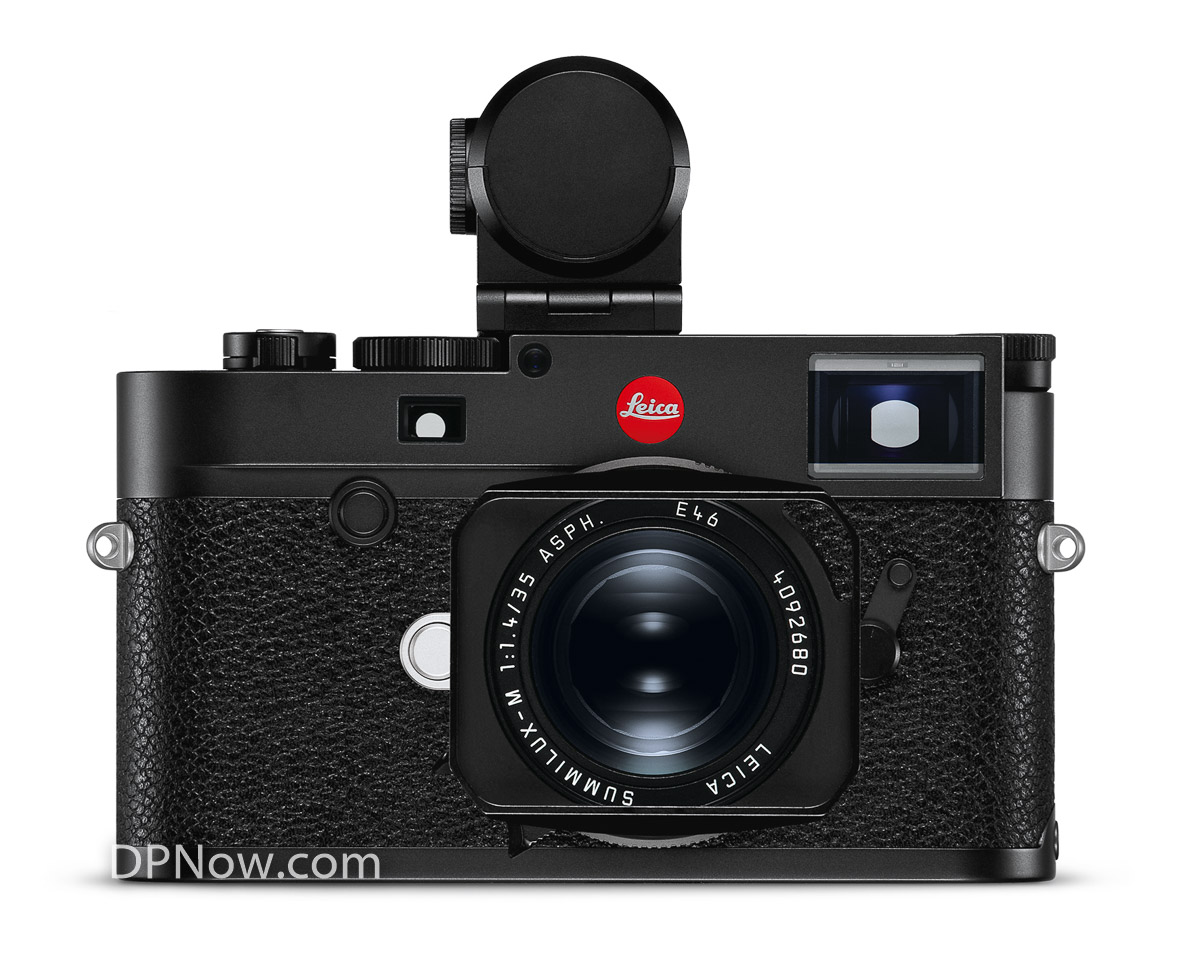

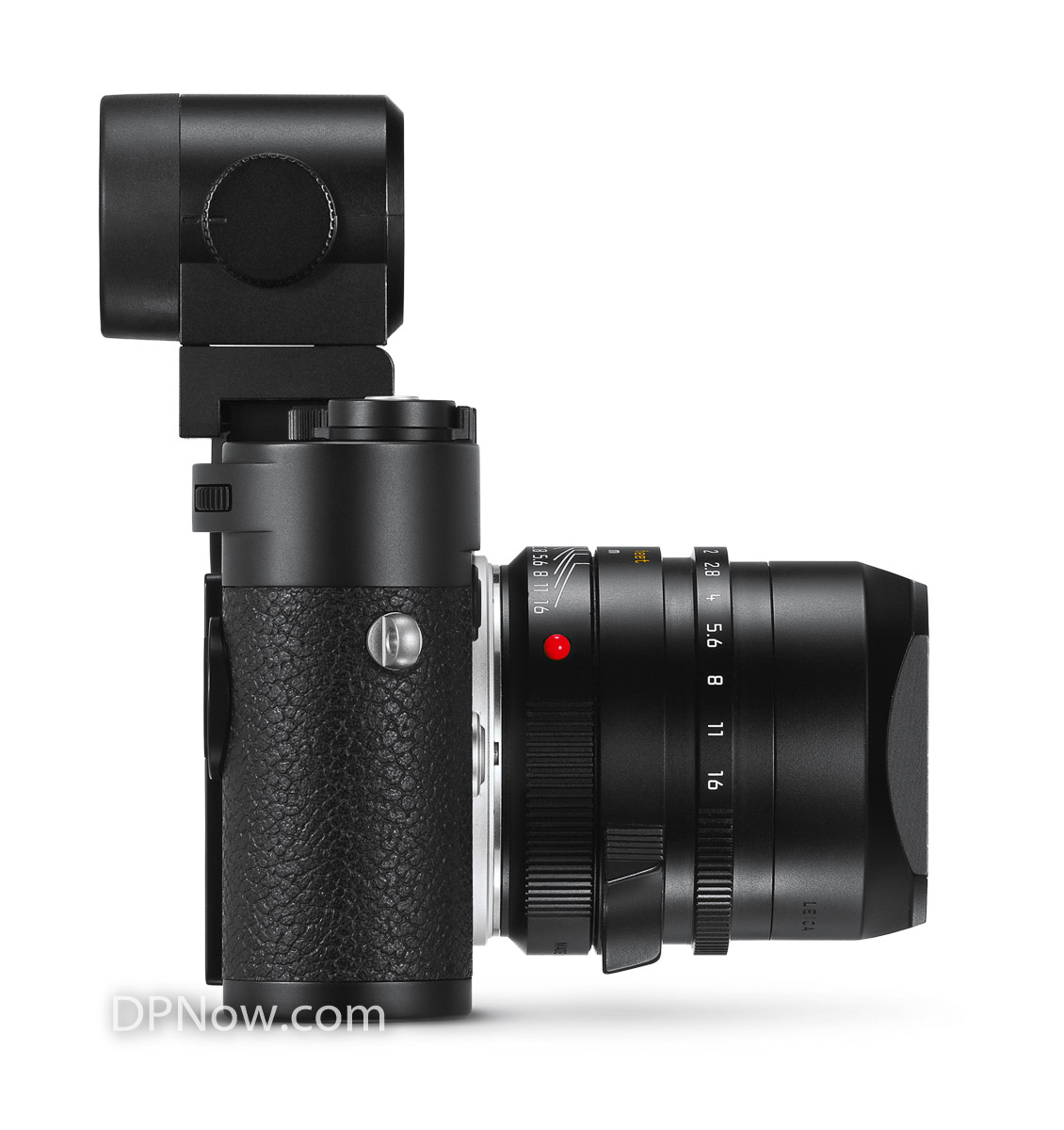

Furthermore, the processor allows the loupe function to be freely positioned for even better sharpness assessment. This new function can be used both on the camera’s monitor screen, and in conjunction with the Visoflex electronic viewfinder (EVF) with 2.4 MP resolution. The viewfinder features a swivel function, enabling shooting from unusual angles, and an integrated GPS module for the geotagging of image files.
Intuitive handling – focused on the essentials
Since the beginning, Leica M-Cameras have always focused on the essentials of photography. This principle has been conscientiously pursued in the Leica M10, setting new standards in intuitive handling and rapid access to the most relevant settings: for example, the controls on the back are limited to a single joystick control and just three buttons for Play, Live View and Menu. Particular settings can be selected according to personal preferences and photographic needs via a freely- configurable Favourites Menu.

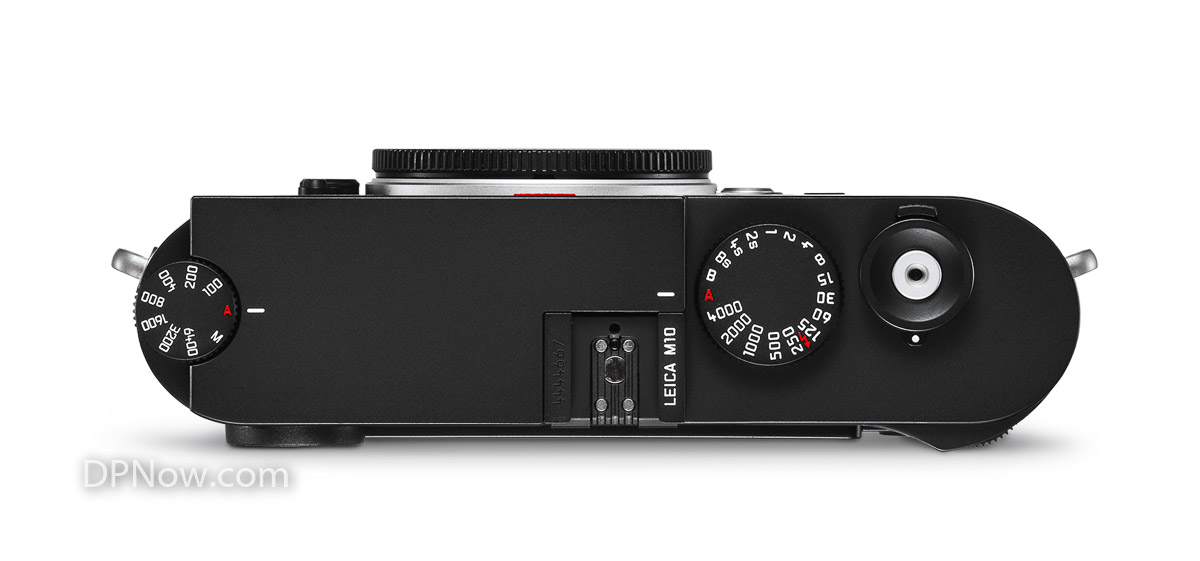

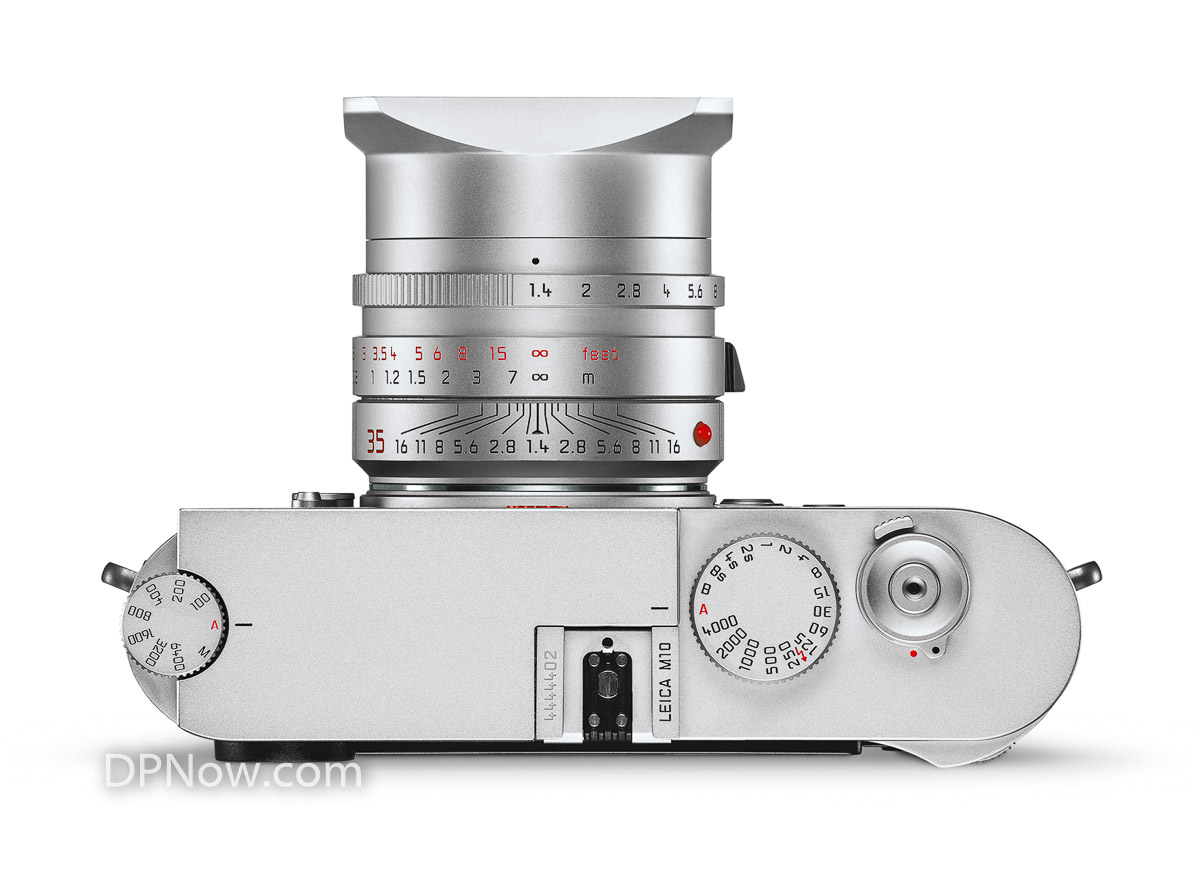

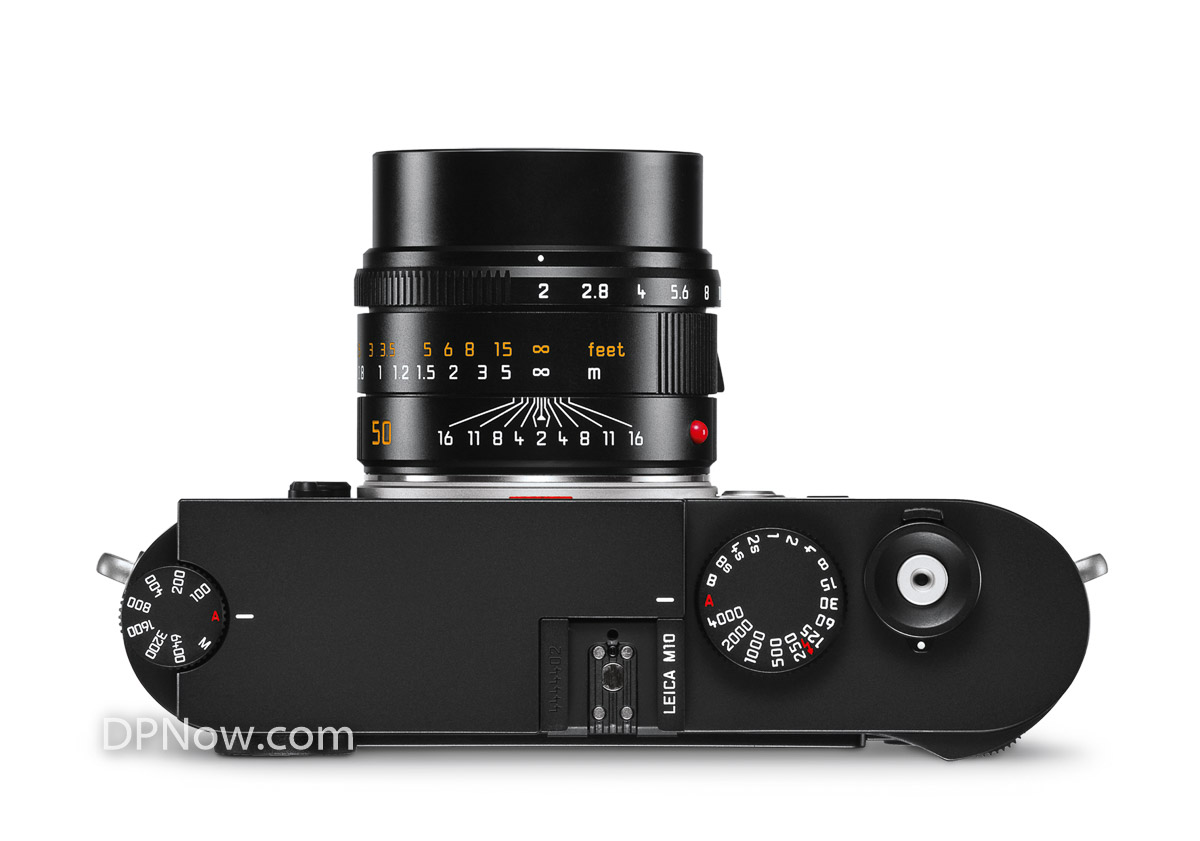

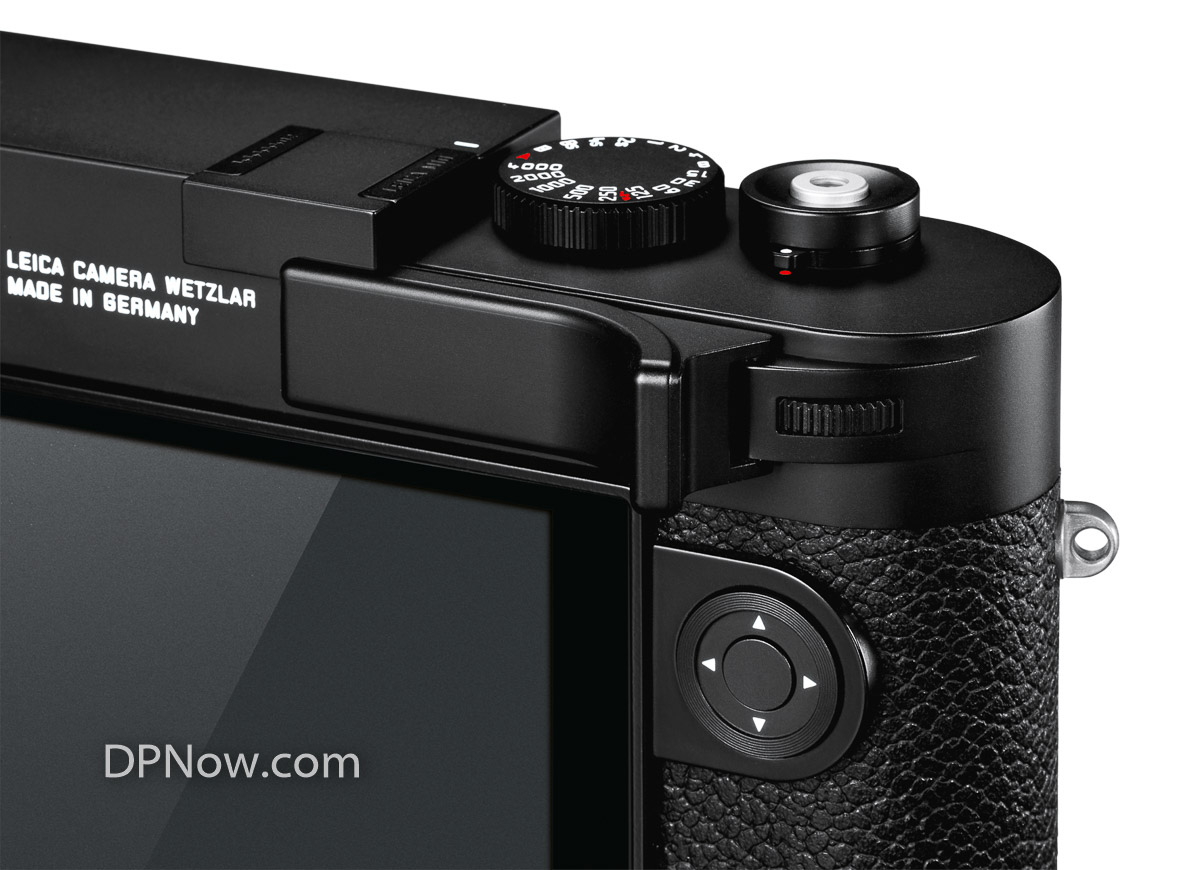

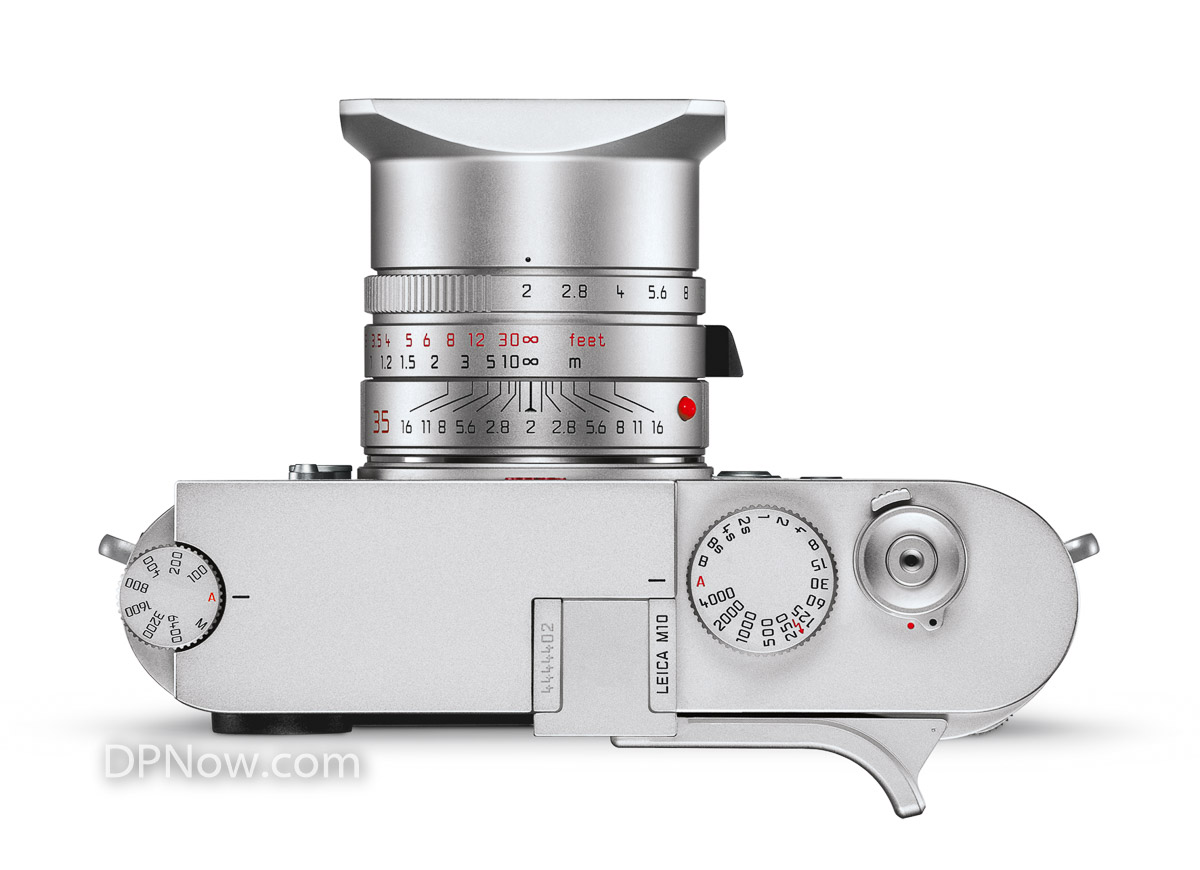

One of the most distinctive features of the Leica M10 is the ISO setting dial on the top plate. For the first time in a digital Leica M, all essential shooting parameters such as focusing, aperture, shutter speed and ISO value can be selected manually without using the menu – or even switching on the camera – ensuring even more direct control and greater discretion when shooting.
WLAN module for wireless transfer and sharing

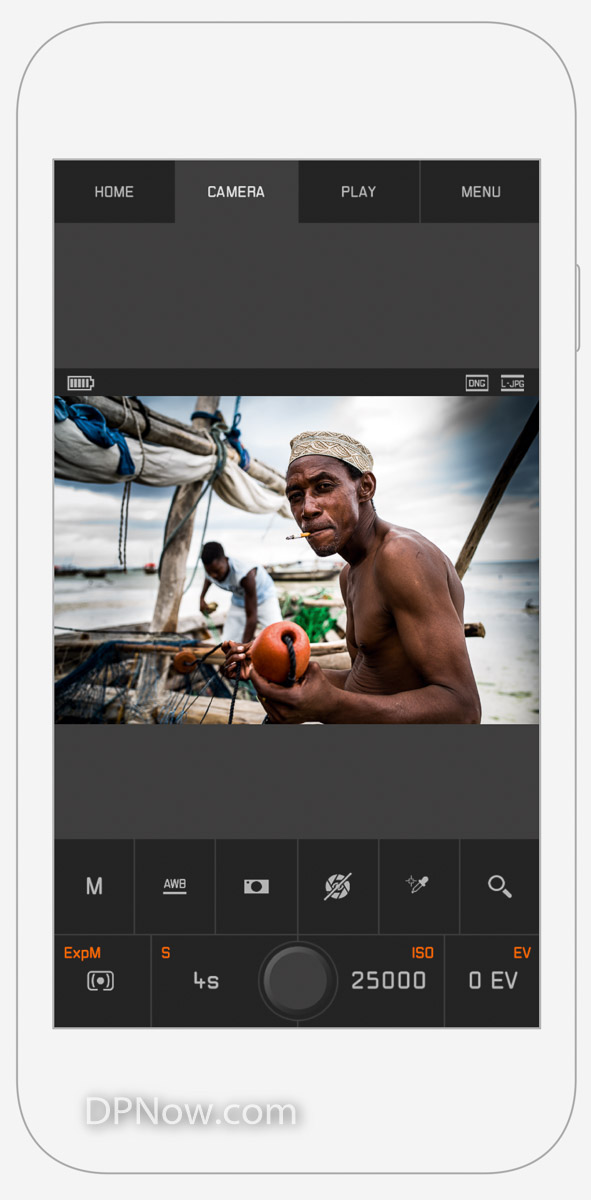

The Leica M10 is the first M-Camera with integrated WLAN connectivity. This enables the fast, wireless transfer of pictures to Apple mobile devices, where they can be edited, posted and shared on social networks, for example. The Leica M-App also allows the direct transfer of RAW data in DNG format to mobile devices for further processing with suitable apps from iOS Version 10.2. The Leica M10 can also be remotely controlled by WLAN from a smartphone or tablet, making it easy to capture pictures from unusual angles or avoid camera shake when shooting with longer shutter speeds.
Leica M10: A further step towards perfection
Oliver Kaltner, CEO Leica Camera AG, explains, “The Leica M is the heart, the backbone and the soul of Leica Camera. The Leica M10 unites state-of-the-art technology and exceptional optical performance with a conscious focus on the traditional advantages of the unique Leica M rangefinder system. In this, the innovative camera and its concentration on the functions essential to photography set new standards, while its exceptionally lean handling concept takes us a further step towards absolute perfection. Made in Germany and made by Leica – the Leica M10 stands as an outstanding brand statement for the finest arts of engineering, highest quality and craftsmanship.”
Dr. Andreas Kaufmann, majority shareholder and chairman of the supervisory board of Leica Camera AG, emphasised, “The new M, the M10! Not a camera for everyone – but increasingly a camera for people who love a system that is built for the future while maintaining consistent compatibility with its past. The rangefinder system lets me frame and compose my pictures. The rangefinder system lets me tread in the footsteps of the world’s greatest photographers. The rangefinder system lets me create photographs with my own visual style. The new M10 and the wealth of present and past Leica M-Lenses – products that awaken and fulfil the desires of every photographer.”
Pricing and availability
The Leica M10 is scheduled to be available from 19 January 2017, at a suggested retail price of
£5,600 including VAT.
About Leica Camera AG
Leica Camera AG is an international manufacturer of premium cameras and sport optics products. The company is headquartered in Wetzlar, Germany, with a second production site in Vila Nova de Famalicão, Portugal. Leica Camera AG operates branch offices in the UK, France, Japan, Singapore, Switzerland, South Korea, Italy, Australia and the USA. New and innovative products have been the driving force behind the company’s positive development in recent years.
Leica M10 – technical specifications
| Camera type | Compact digital viewfinder/rangefinder system camera |
| Lens attachment | Leica M bayonet with additional sensor for 6-bit coding |
| Lens system | Leica M lenses

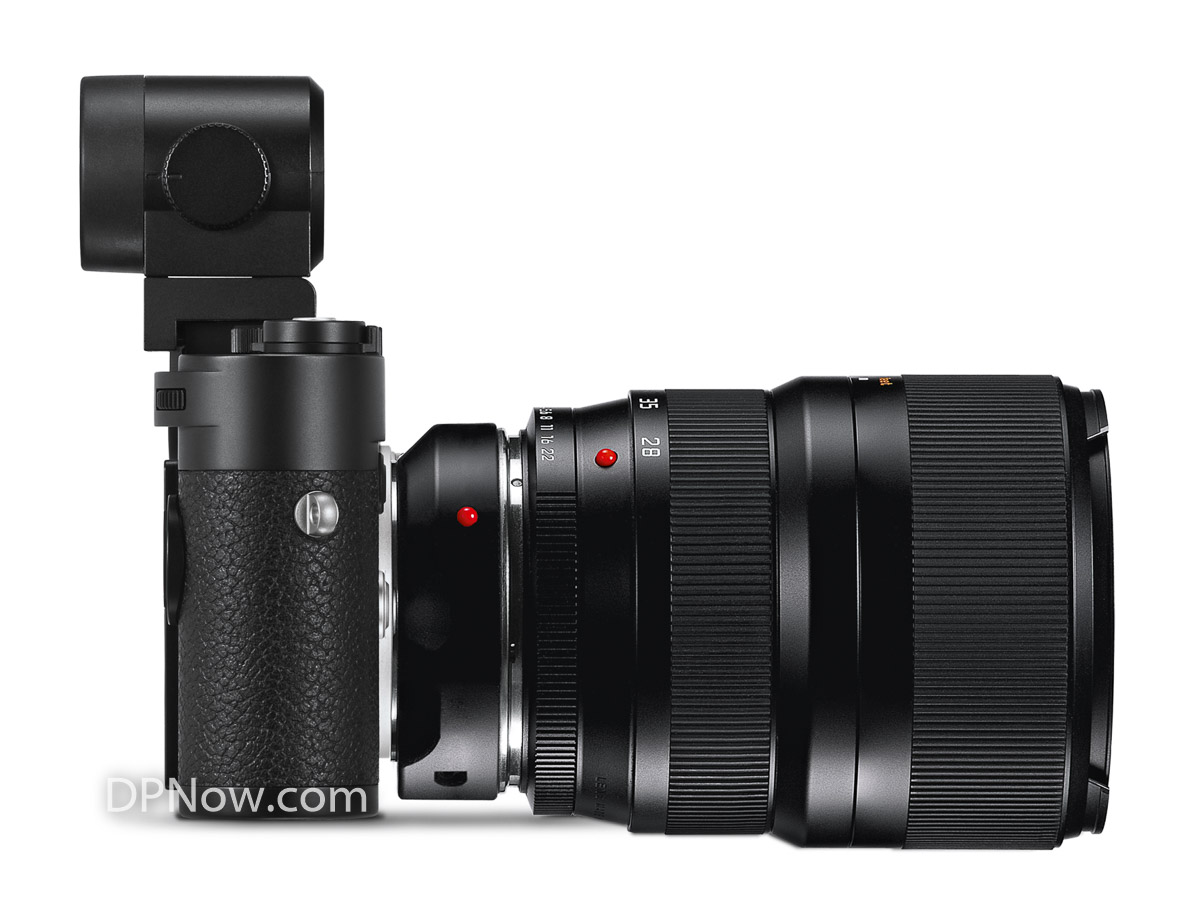

Leica R lenses – using adapter, available separately |
| Image sensor | CMOS sensor, active surface approx. 24 x 36mm |
| Resolution | DNG™: 5976 x 3992 pixels (24MP), JPEG: 5952 x 3968 pixels (24MP),
4256 x 2832 pixels (12MP), 2976 x 1984 pixels (6MP) |
| Data formats | DNG™ (raw data, compressed loss-free), JPEG |
| File size | DNG™: 20-30 MB, JPEG: size dependent on resolution and image content |
| Buffer memory | 2GB / 16 pictures in series |
| White balance | Automatic, manual, 8 presets, colour temperature input |
| Storage media | SD cards up to 2GB/SDHC cards up to 32GB/SDXC cards up to 2TB |
| Menu languages | German, English, French, Spanish, Italian, Portuguese, Japanese, Traditional Chinese, Simplified Chinese, Russian, Korean |
| Exposure metering | Exposure metering through the lens (TTL), with working aperture |
| Metering method | For metering the light reflected by light blades of the 1st shutter curtain onto a measuring cell: strong centre-weighted;
For metering on the sensor: spot, centre-weighted, multi-field metering |
| Metering range | At room temperature and normal humidity at ISO 100, at aperture 1.0 EV-1 to EV20 at aperture 32. Flashing of the left triangular LED in the viewfinder indicates values below the metering range |
| Sensitivity range | ISO 100 to ISO 50,000, adjustable in 1/3 ISO increments from ISO 200, choice of automatic control or manual setting |
| Exposure modes | Choice of automatic shutter speed control with manual aperture preselection – aperture priority A, or manual shutter speed and aperture setting |
| Flash exposure control | |
| Flash unit attachment | Via accessory shoe with central and control contacts |
| Synchronisation | Optionally triggered at the 1st or 2nd shutter curtain |
| Flash sync time | 1/180 s ; slower shutter speeds can be used, if working below sync speed: Automatic changeover to TTL linear flash mode with HSS-compatible Leica system flash units |
| Flash exposure metering | Using centre-weighted TTL pre-flash metering with Leica flash units (SF40, SF64, SF26), or flash units compatible with the system with SCA3502 M5 adapter |
| Flash measurement cell | 2 silicon photodiodes with collection lens on the camera base |
| Flash exposure compensation | ±3EV in1⁄3EV increments |
| Displays in flash mode | In viewfinder only: using flash symbol LED |
| Viewfinder | |
| Construction | Large, bright line frame viewfinder with automatic parallax compensation |
| Eyepiece | Calibrated to -0.5 dpt.; corrective lenses from -3 to +3 diopter available |
| Image field limiter | By activating two bright lines each: for 35 and 135mm, or 28 and 90mm, or 50 and 75mm; automatic switching when lens is attached |
| Parallax compensation | The horizontal and vertical difference between the viewfinder and the lens is automatically compensated according to the relevant distance setting, i.e. the viewfinder bright-line automatically aligns with the subject detail recorded by the lens |
| Matching viewfinder and actual image | At a range setting of 2m, the bright-line frame size corresponds exactly to the sensor size of approx. 23.9 x 35.8mm; at infinity setting, depending on the focal length, approx. 7.3% (28mm) to 18% (135mm) more is recorded by the sensor than indicated by the corresponding bright line frame and slightly less for shorter distance settings than 2m |
| Magnification | (For all lenses): 0.73 x |
| Large-base rangefinder | Split or superimposed image rangefinder shown as a bright field in the centre of the viewfinder image |
| Effective metering basis | 50.6mm (mechanical measurement basis 69.31mm x viewfinder magnification 0.73x) |
| Displays | |
| In the viewfinder | Four-digit digital display with dots above and below |

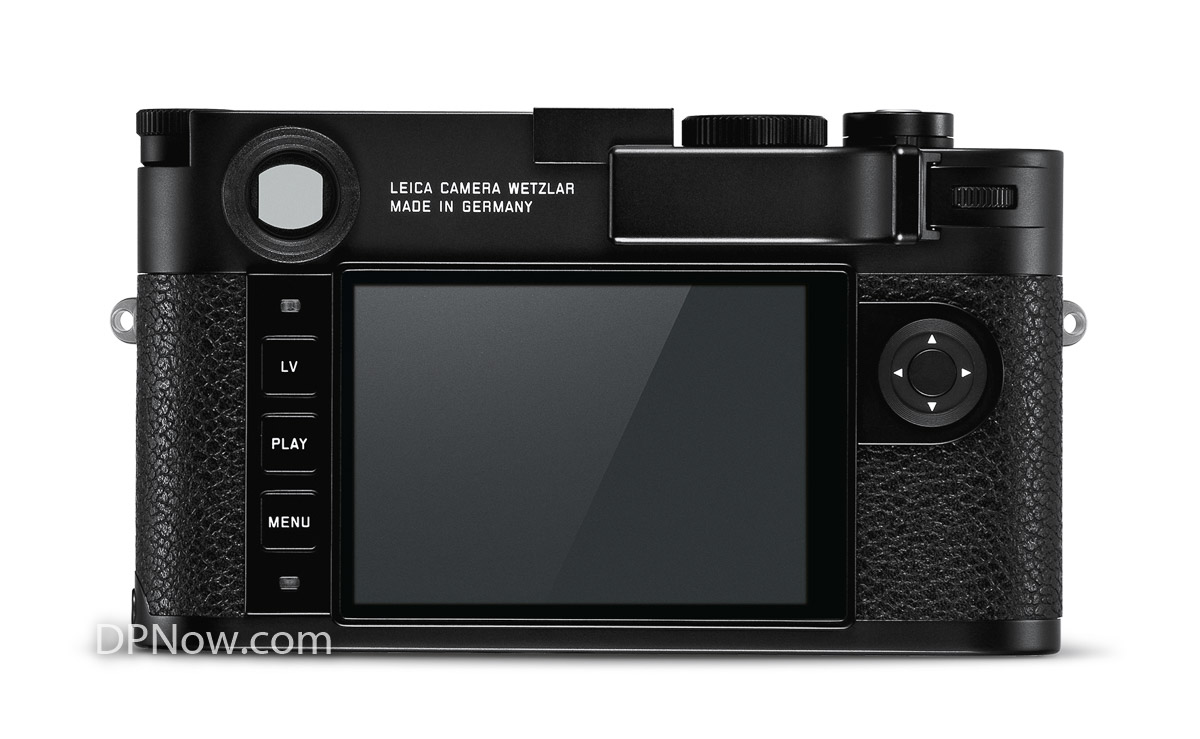

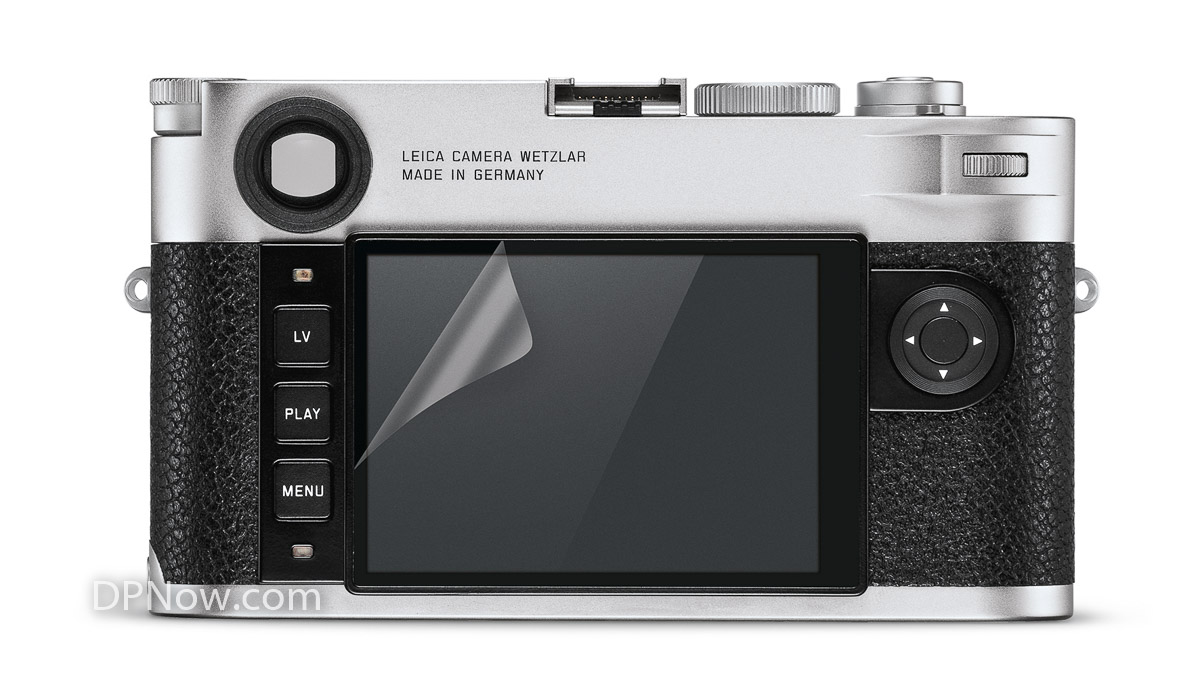

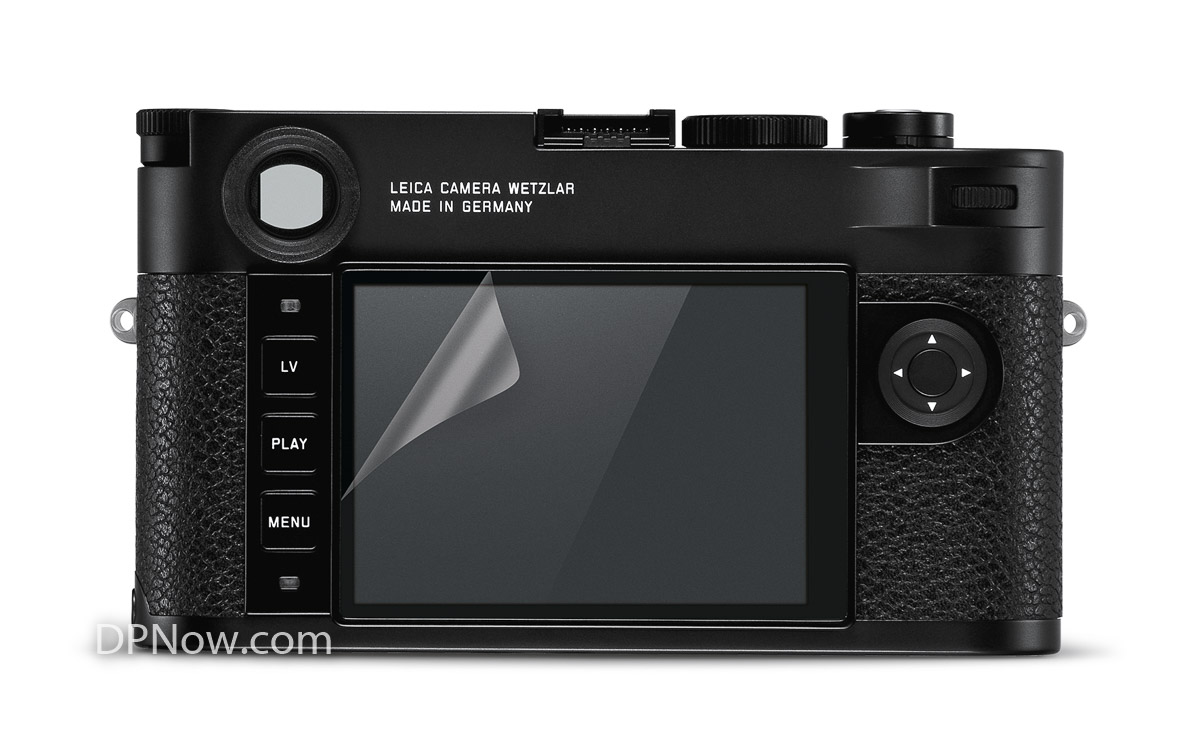

| LCD monitor (back) | 3” colour -TFT LCD monitor with 16 million colours and 1,036,800 pixels, approx. 100% image field
Tough, scratch-resistant Gorilla® glass cover Colour space: sRGB, for Live-View and review mode, displays |
| Shutter/shutter release | |

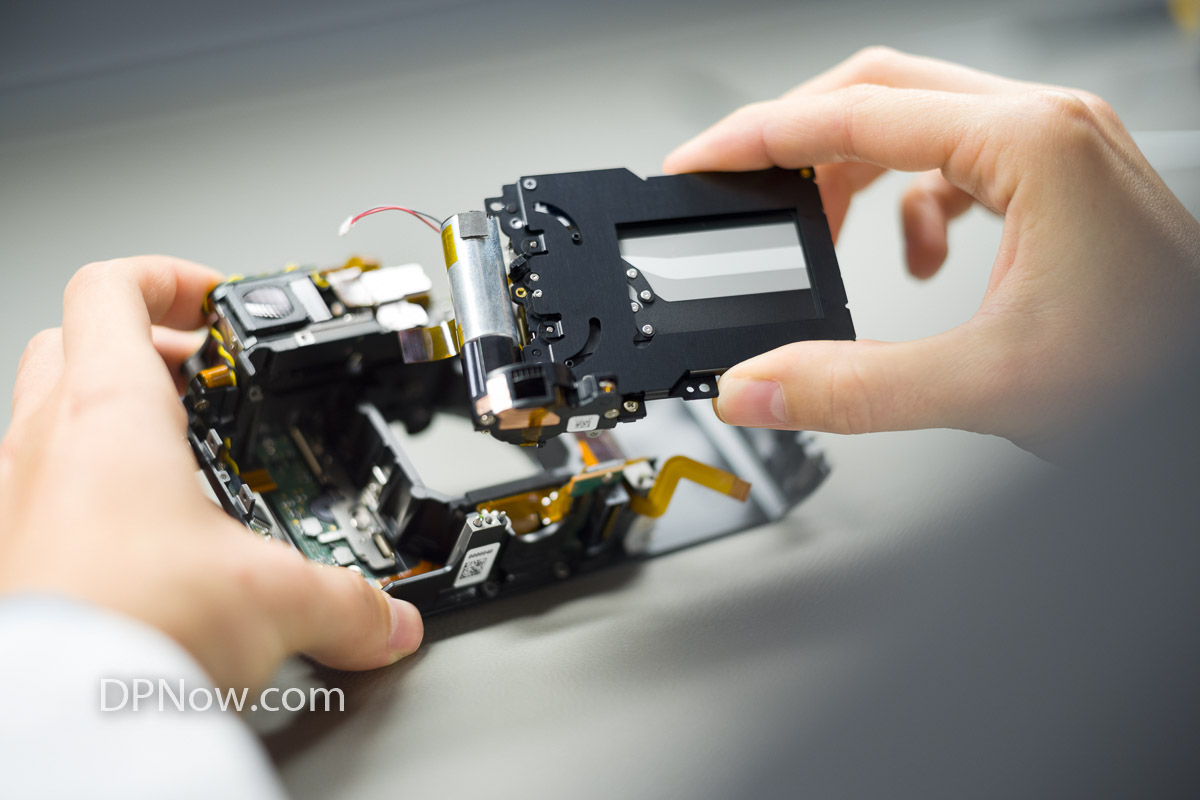

| Shutter | Metal blade focal plane shutter with vertical movement |
| Shutter speeds | For aperture priority: (A) continuous from 125s to 1⁄4000s, for manual adjustment: 8s to 1⁄4000s in half steps, from 8s to 125s in whole steps,
B: for long exposures up to maximum 125s (in conjunction with self-timer T function, i.e. 1st release = shutter opens, 2nd release = shutter closes), (1⁄180s): Fastest shutter speed for flash synchronisation, HSS linear flash mode possible with all shutter speeds faster than 1⁄180s (with HSS-compatible Leica system flash units) |
| Continuous shooting | Approx. 5 pictures/s, 30-40 pictures in series |
| Shutter release button | Two-stage, 1st step: Activation of the camera electronics including exposure metering and exposure lock (in aperture priority mode), 2nd step: Shutter release; standard thread for cable release integrated |
| Self-timer | 2s (aperture priority and manual exposure setting) or 12s delay, set in menu, indicated by flashing LED on front of camera and corresponding display in monitor |
| Turning the camera on/off | Using main switch on top of camera; optional automatic shutdown of camera electronics after approx. 2/5/10 minutes; reactivated by tapping the shutter release |
| Power supply | 1 Lithium-ion rechargeable battery, nominal voltage 7.4V, capacity 1300mAh.; maximum charging current/voltage: DC 1000mA, 7.4V; Model No.: BP-SCL5; Manufacturer: PT. VARTA Microbattery, Made in Indonesia, Operating conditions (in camera): 0°C – + 40°C |
| Charger | Inputs: 100-240V AC, 50/60Hz, 300mA, automatic switching, or 12V DC, 1.3A; Output: DC 7.4V, 1000mA/max. 8.25V, 1100mA; Model No.: BC-SCL5;
Manufacturer: Guangdong PISEN Electronics Co., Ltd., Made in China, Operating conditions: 0°C – + 35°C |
| GPS | Only with Leica Visoflex viewfinder, available as an accessory
Not available everywhere due to country-specific legislation, i.e. enforced automatic shutdown in those countries Data are written to EXIF header in picture files |
| WiFi | Complies with IEEE 802.11b/g/n standard (standard WiFi protocol), channel 1- 11, encryption method: WiFi-compatible WPA™/WPA2™ encryption, access method: Infrastructure mode |
| Camera body | |
| Material | All-metal die cast magnesium body, synthetic leather finish. Brass top panel and base, black or silver chrome plated finish |
| Image field selector | Allows the bright-line pairs to be manually activated at any time (e.g. to compare detail) |

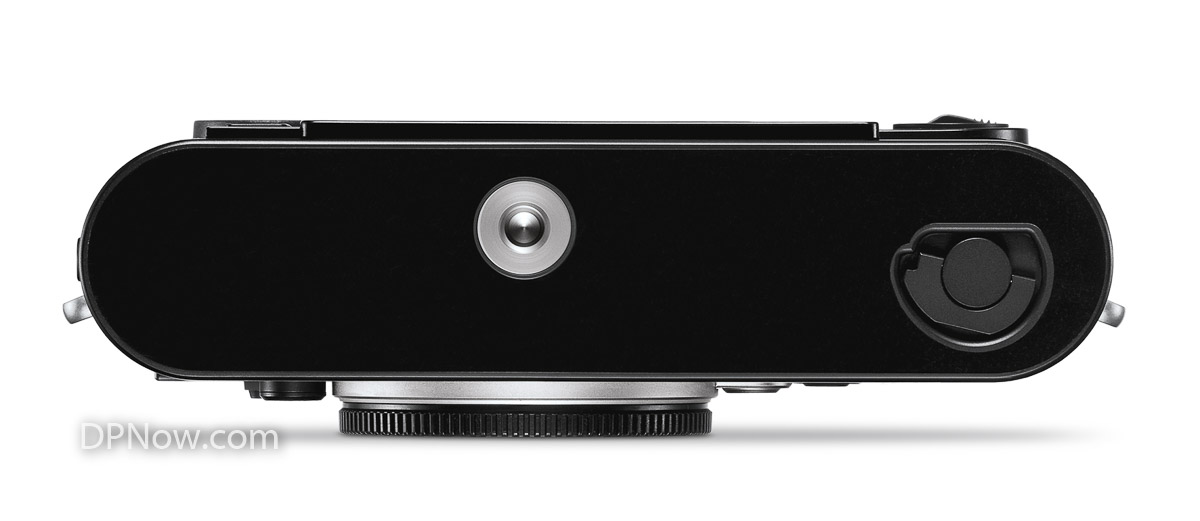

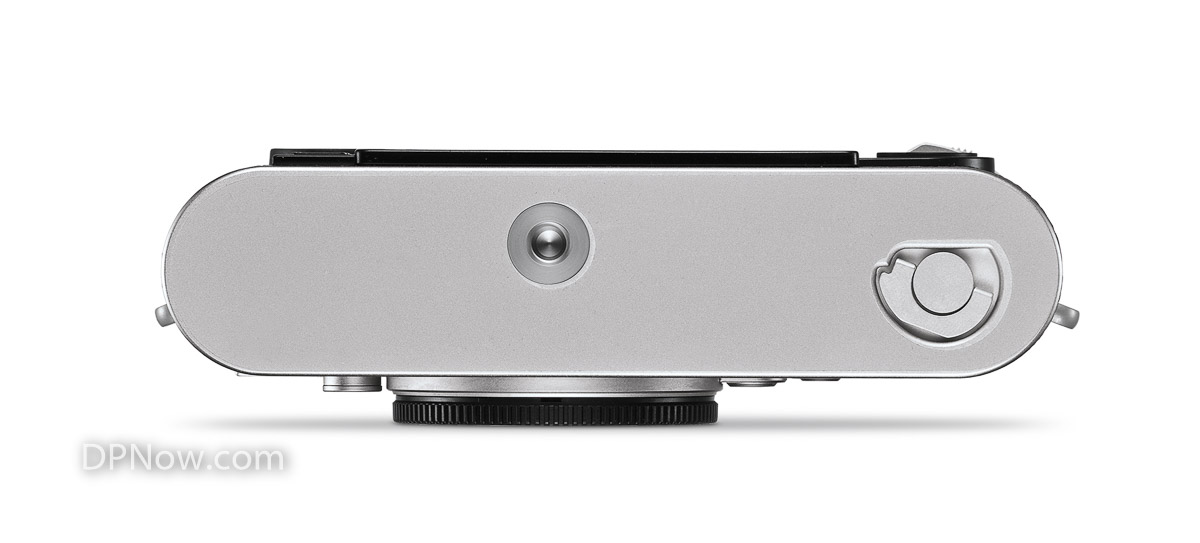

| Tripod thread | A ¼ (¼”) DIN stainless steel in bottom |
| Operating conditions | 0 – 40°C |
| Interfaces | ISO accessory shoe with additional contacts for Leica Visoflex viewfinder (optional accessory) |
| Dimensions W x D x H | Approx. 139 x 38.5 x 80mm |
| Weight | Approx. 660g (with battery) |

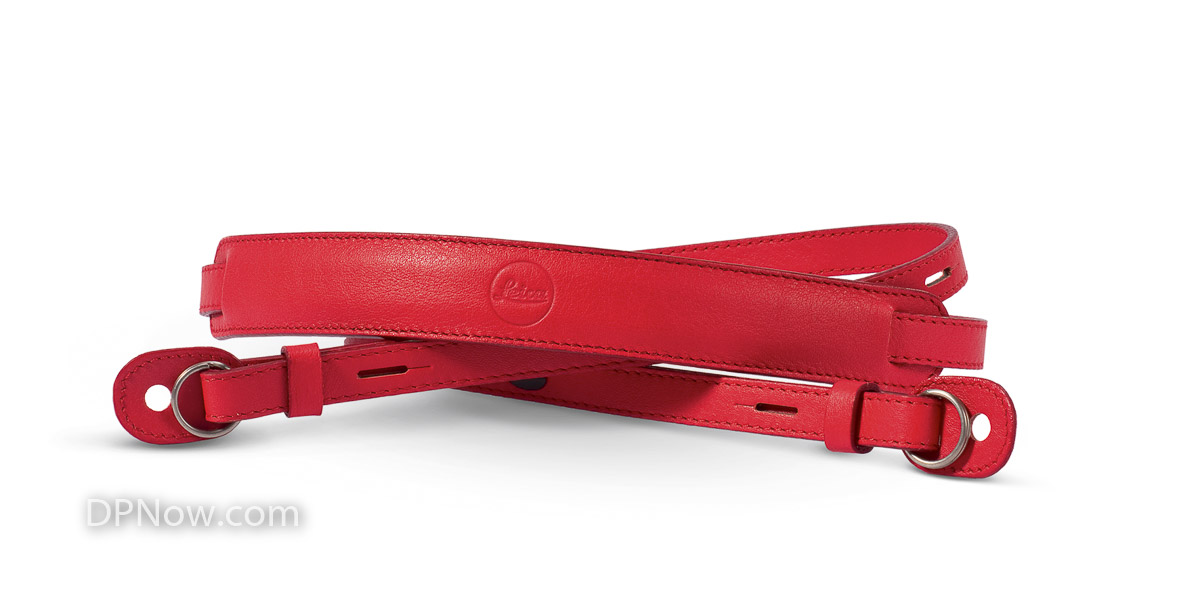

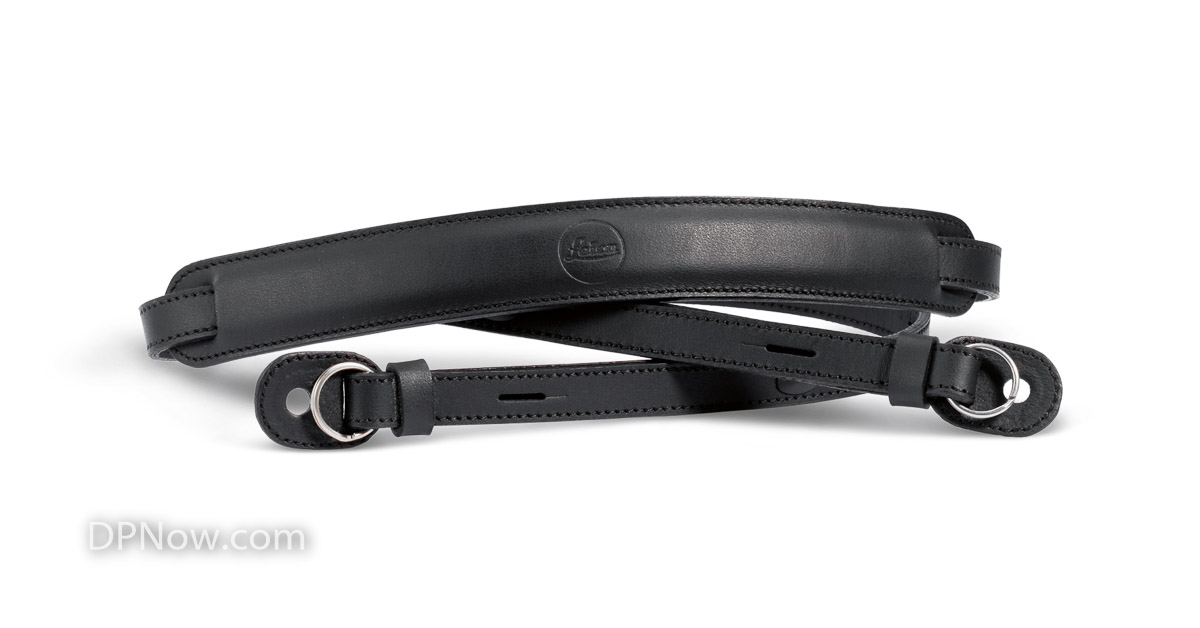

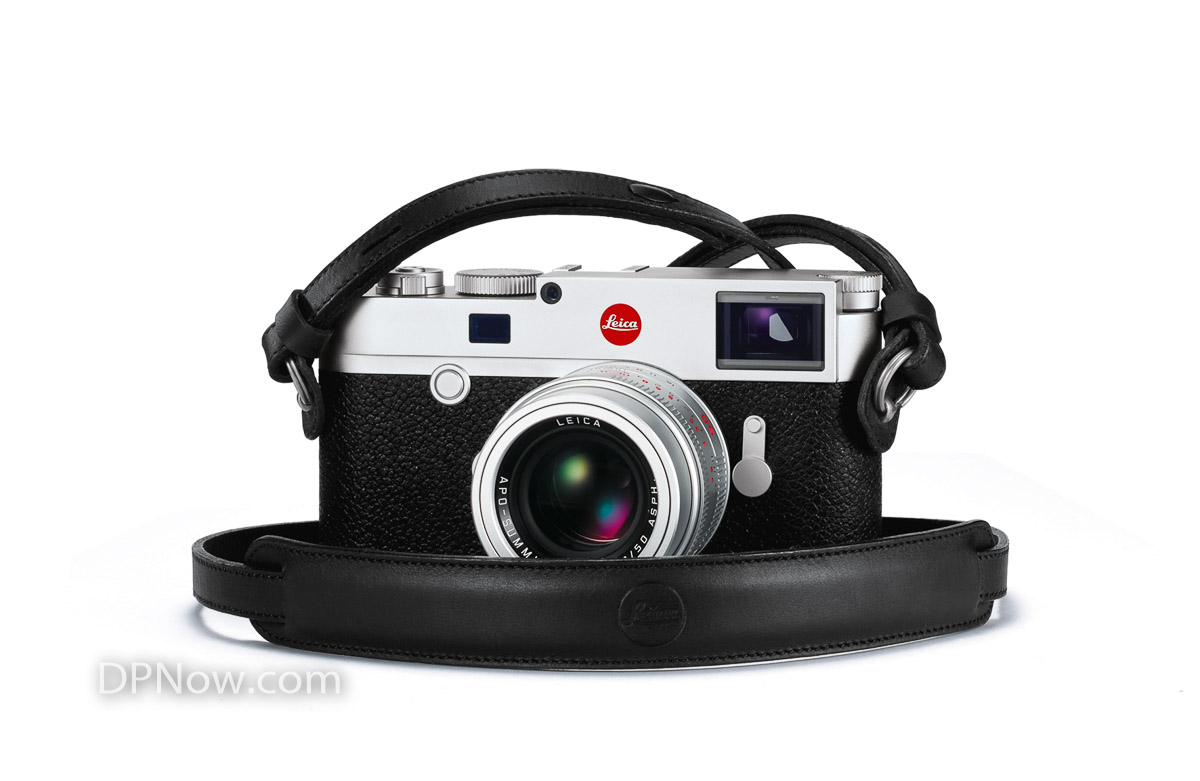

| Included with camera | Charger 100-240V with 2 mains cables (Euro, USA, varies in some markets) and 1 car charging cable, Lithium-ion battery, carrying strap, body bayonet cover, cover for accessory shoe |
E&OE. Subject to changes in design, production and availability.
